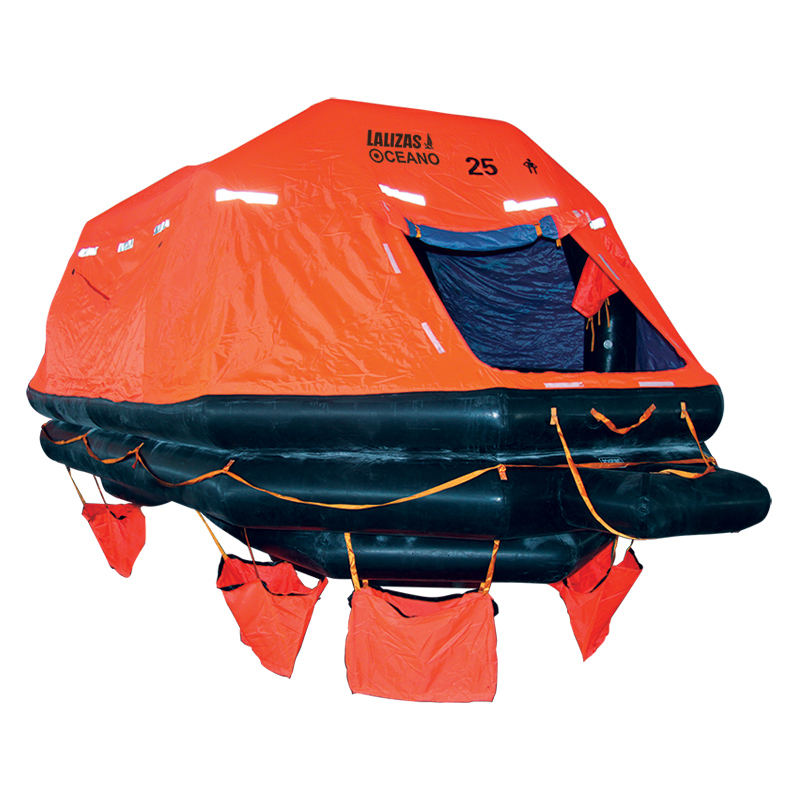

LALIZAS Liferaft SOLAS OCEANO, Throw Over-board Self-Righting Type
• For use on all types of passenger vessels
• Equipment packs: SOLAS Pack A or SOLAS Pack B
• Available capacities: from 25 to100 persons
• GRP canister
• Durable rubber fabric
• Double chambered tubes
• Stowage height up to 36m (Painter Line up to 46m)
• Insulated floor for low temperature conditions
• High visibility canopy with SOLAS Retroreflective Tapes
• Fully operational at temperatures from -30oC up to +65oC
• Global Service Stations’ network
• Supplied with deck cradle in wooden box
* The table given below shows the total weight of each liferaft including its canister, without the deck cradle & the wooden box.
| Image | Code | B | C | D | E | H | Max Persons | Pack | A | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
|
72549 | 3130mm | 5350mm | 1700mm | 765mm | 680mm | 25 | A | 2250mm | 235 |
|
|
72550 | 4275mm | 7470mm | 2095mm | 895mm | 877mm | 50 | A | 2900mm | 395 |
|
|
72551 | 5380mm | 11090mm | 2400mm | 1050mm | 1050mm | 100 | A | 3400mm | 830 |
|
|
72552 | 3130mm | 5350mm | 1490mm | 757mm | 678mm | 25 | A | 2250mm | 175 |
|
|
72553 | 4275mm | 7470mm | 1800mm | 810mm | 700mm | 50 | B | 2900mm | 280 |
|
|
72554 | 5380mm | 11090mm | 2095mm | 895mm | 995mm | 100 | B | 3400mm | 600 |
